| Brand Name : | JZTG |
| Model Number : | Kelly bar Spare parts Swivel |
| Certification : | CE,ISO,IAF,CQC |
| Price : | Negotiable |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 5000pcs per month |
| Delivery Time : | 3-10days |
Q345 Kelly Bar Tool Drilling Rig For Construction Machine Parts

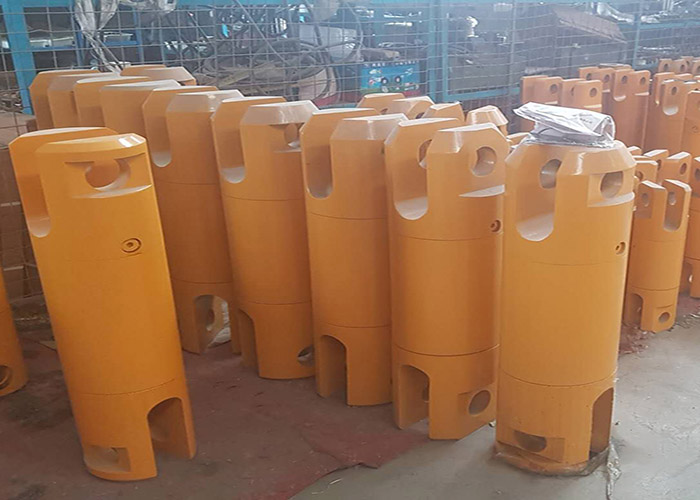

Kelly bar is a comsumable part, to improve the perforemance and prolong the service life of old kelly bars, we can supply all kinds of spare parts including Kelly swivel, Kelly Spring, Kelly Stub, Water flow block, Kelly Terminal, Kelly Strip, Kelly pipe and so on.
Technical Parameter of JZTG Inter-Locking Kelly Bars
Diameter (MM) | Elements | Length (M) | Torque (KN·M) | Max Drilling Depth(M) |
| 355 | 3&4 | 8-12 | 180 | 42 |
| 377/368 | 3&4 | 8-13 | 220 | 46 |
| 406/394 | 3&4 | 8-14 | 230 | 50 |
| 419/426 | 3&4 | 8-15 | 250 | 54 |
| 440/445 | 3&4 | 8-15 | 259 | 54 |
| 470 | 3&4 | 8-17 | 280 | 62 |
| 508 | 3&4 | 10-17 | 320 | 62 |
| 530 | 3&4 | 10-20 | 380 | 71 |
| 575 | 3&4 | 10-21 | 420 | 75 |
| 630 | 3&4 | 10-21 | 460 | 75 |
| All specifications can be tailored as per customers’ special requirements. | ||||
Technical Parameter of JZTGFriction Kelly Bars
Diameter (MM) | Elements | Length (M) | Torque (KN·M) | Max Drilling Depth(M) |
| 355 | 3&4&5 | 8-12 | 180 | 54 |
| 377/368 | 3&4&5 | 8-13 | 220 | 59 |
| 406/394 | 3&4&5 | 8-14 | 230 | 64 |
| 419/426 | 3&4&5 | 8-15 | 250 | 69 |
| 440/445 | 3&4&5 | 8-15 | 259 | 69 |
| 470 | 4&5&6 | 8-17 | 280 | 95 |
| 508 | 4&5&6 | 10-17 | 320 | 95 |
| 530 | 4&5&6 | 10-20 | 380 | 112 |
| 575 | 4&5&6 | 10-21 | 420 | 118 |
| 630 | 4&5&6 | 10-21 | 460 | 118 |
| All specifications can be tailored as per customers’ special requirements. | ||||
|
|
